Big Horn 19696 Concealed 35 mm Hinge Router Jig

Big Horn 19696 Concealed 35 mm Hinge Router Jig. Machine 35mm hinge cup holes with your router instead of a drill press. The hinge mounting screw holes are used to clamp the Jig. So screw clamp the jig, route and install the hinge.

• Delivers precise hinge installation by creating clean 35mm cup holes for concealed and European-style cabinet hinges.
• Provides consistent alignment with a flat acrylic base that sits flush against the edge of the cabinet door.
• Simplifies hinge layout using a bold centerline that helps align the template to your door markings.

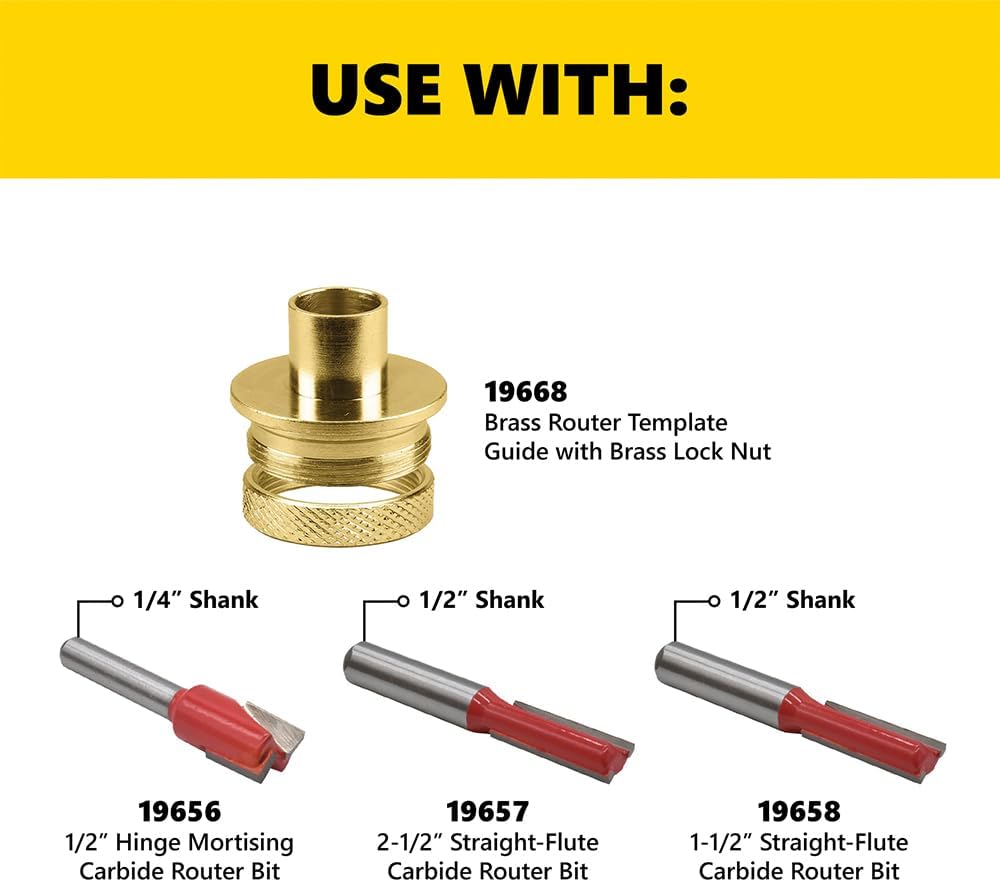

• The molded base provides extra support during routing and helps keep the template stable. | Use a Big Horn 19668 Router Template Guide & Nut (5/8" OD x 17/32" ID x 1/2" height) and Big Horn 19656 1/2" carbide mortising router bit, both sold separately.
• Offers clear visibility while working with a fully transparent acrylic construction that keeps your layout lines in view. | Designed for use with a router only and not compatible with drill presses or Forstner bits.
